Key Features	Certifications	Mechanical Specifications	Warranty	Electrical Performance
SMBB Technology (improved current collection). PID resistance and durability in extreme conditions (salt mist, ammonia). Hot 2.0 Technology (lower LID/LETID). Mechanical load capacity: 2400 Pa (wind), 5400 Pa (snow). Resistance to extreme environmental conditions salt spray and ammonia.	IEC61215/61730、ISO9001/14001/ 45001。	Dimensions: 2278×1134×35mm (89.69×44.65×1.38 inches). Weight: 28 kg (61.73 lbs). Front Glass: 3.2mm anti-reflection tempered glass. Frame: Anodized aluminum alloy.	12-year product warranty. 30-year linear power warranty with 0.40% annual degradation.	Temperature coefficients: Pmax (-0.30%/°C), Voc (-0.25%/°C), Isc (+0.046%/°C). NOCT: 45°C. System Voltage: 1000/1500VDC.

1.2.2 Power Range: 695W–720W (up to 720Wp)

Key Features	Certifications	Mechanical Specifications	Warranty	Electrical Performance
High efficiency (23.2%) with low temperature coefficient (-0.29%/°C). Bifaciality: 80±5% (10–20% backside power gain). Non-destructive cutting technology (reduced micro-cracks). Low voltage design for reduced BOS/LCOE costs.	IEC61215/61730/61701 /62716,ISO9001/14001/ 14064/45001.	Dimensions: 2384×1303×33mm (93.86×51.30×1.30 inches). Weight: 38.3 kg (84.4 lbs). Front/Back Glass: 2.0mm AR-coated heat-strengthened glass. Frame: 33mm anodized aluminum alloy (IP68 junction box).	12-year product warranty. 30-year power warranty with 1% first-year degradation and 0.40% annual degradation thereafter.	Temperature coefficients: Pmax (-0.29%/°C), Voc (-0.24%/°C), Isc (+0.04%/°C). NOCT: 43°C. System Voltage: 1500VDC.

1.3 Inverter

1.3.1 Hybrid inverter 3-50kW

Key Features:

Automatic switching time 4ms

6 time periods for battery charging/discharging

V/f droop control, Max. 16pcs in parallel

Supports using diesel generator to charge battery directly, ensuring system energy supply 7* 24H

Max. conversion efficiency of 97.6%;

Max. battery charge efficiency of 96.5%

Max. charging/discharging current of 290A

1.3.2 Grid-connected inverter 1-136kW

Key Features:

Max. 8 MPP trackers, Max. efficiency up to 98.9%

High DC/AC ratio 1.5 times for more yields

Wide output voltage range 277-520Vac

Zero export application, response speed within 0.5S

T-type three-level topology and enhanced SVPWM

Type ll DC/AC SPD, frequency droop control technology

Max. DC input current of 16A/string, adpat to 600W solar panel

String intelligent monitoring (optional), Ani-PlD function (Optional)

1.3.3 Microinverter 300-2200W

Key Features:

Support reactive power compensation, comply with UL code.

Module level monitoring, Max.4 MPPTs design

Max. DC input current 13A, adapt to 600W PV module

Rapid shutdown function, safe and reliable

Zigbee or WlFl communication

IP67 protection degree, 10 years warranty

Applications: Balcony PV systems, shaded environments.

1.3.4 Single Phase String Inverter:

Key Features:

Max. efficiency up to 98.9%

Wide output voltage range (80V–600V)

1-2 MPP trackers

Anti-PID function (optional)

IP65 protection

Applications: Residential and small commercial PV systems.

1.3.5 Three Phase String Inverters

Key Features:

Max. efficiency up to 98.8%

Up to 8 MPP trackers

Zero export application, VSG support

Wide voltage range (277–520V)

IP65 protection, natural/intelligent cooling

Applications: Large commercial and industrial solar plants.

1.3.6 Single Phase Hybrid Inverters

Key Features:

Battery compatibility (Li-ion/Lead-acid)

Max. charging/discharging current: 140A–250A

6 programmable time periods for energy management

Supports diesel generator integration

Parallel operation (up to 16 units)

Applications: Off-grid/backup systems, retrofitting existing PV setups.

1.3.7 Three Phase Hybrid Inverters

Key Features:

High-voltage battery support (160–800V)

100% unbalanced output per phase

Max. efficiency: 97.6%

Grid-forming capability for off-grid operation

IP65 protection, intelligent cooling

Applications: Large-scale energy storage, microgrids.

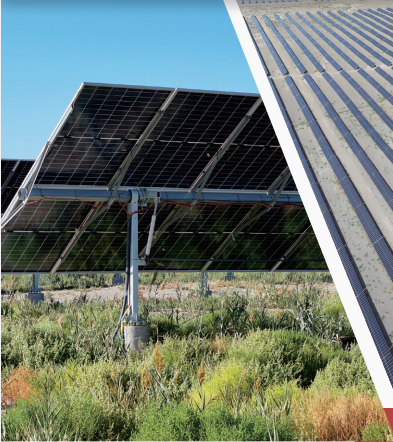

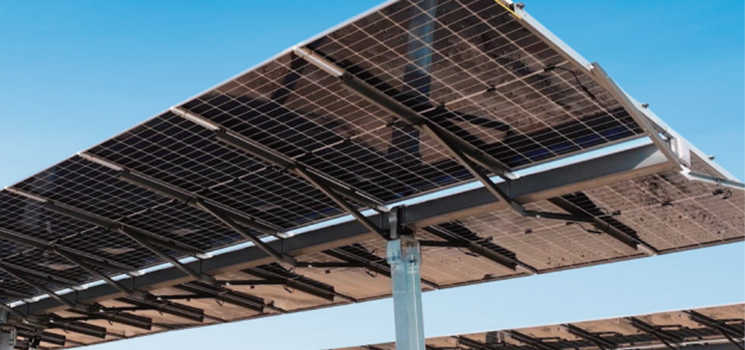

1.4 Single Axis System

1.Multi-points support Better structural stability

2.Independent control of the drives, each drive interlocked, active adjustment of the spindle twist

3.Perfect multiple protection algorithm to ensure reliable and stable operation

4.Innovative Outer spherical bearings design, self-adapting to 15% slope travel

5.Intelligent tracking algorithm for up to around 12% power generation Compare with Fixed Structure

1.5 Fixed mounting system

1.Full Supply chain
2.Self owned Zn-AI-Mg Coating production line

3.High strength Steel
4.Daily Capacity 100MW

1.6 Seasonal-adjustable mounting system

The one-piece frame structure with multi-point support and synchronized self-locking significantly improves the resistance performance;the intelligent adjustment design helps to upgrade the operation and maintenance of the power station in a breastfeeding manner.

1.7 High brine treatment technology
